Foil free aluminium mylar

FOB Reference Price:Get Latest Price
US $3,000-4,500 / Tons | 0.5 Ton/Tons available upon request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
APP0047
Type:
Insulation Tape
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
Customer requirements
Tensile Strength:
≥35Mpa
Thickness:
30μ-60μ
Width:
≥4mm
ID:
53±0.5mm/76mm±0.5mm
OD:
200mm-700mm
Color:
silver/blue/golden and other colors on request.
Elongation:
≥35%
Supply Ability
Supply Ability:
100 Ton/Tons per Month available upon request
Packaging & Delivery
Packaging Details
Carton/Wooden box and plastic packaging,moistureproof.
Port
Shanghai
Lead Time :
Up to customer's requirement

Specifications

Colors:Nature(silver),blue,gold and other colors on request;
Delivery:Pads(reels) and spools(bobbins);



Colors:Nature(silver),blue,gold and other colors on request.

Minium slitting width:aluminium width 4mm,PET dege width 1mm

Delivery:Pads(reels) and spools(bobbins)



Construction(um)

Total Thickness±10%(um)

Tensile Strength(≥N/mm2)

Elongation(≥%)

AL7+PET12+ PET15

40

70

35

AL7+PET15+ PET15

43

70

35

AL9+PET12+ PET15

42

70

35

AL9+PET15+ PET15

45

70

35

AL9+PET15+ PET23

53

70

35



AL Width(mm)

PET Edge Width(mm)

Total Width(mm)

4

1

4+6

6

1

6+8

8

1.5

8+11

10

2

10+14

12

2

12+16

14

2

14+18

17

3

17+23



1







free-edge-(6)





free edge (2)





free edge (1)

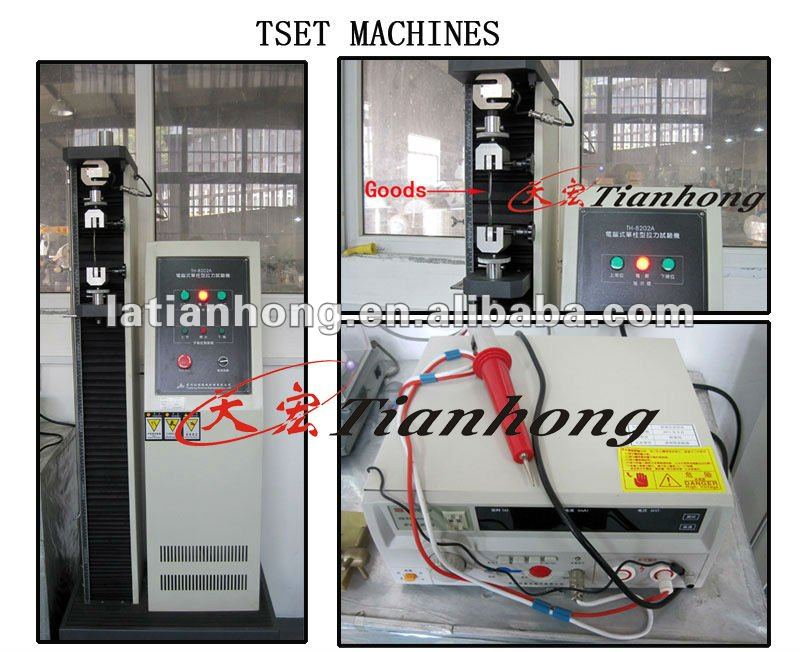

test-machines
