Single Side Double Side Aluminum Copolymer Tape

FOB Reference Price:Get Latest Price
US $2.5-3.8 / Kilograms | 0.5 Ton/Tons Customer requirements (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
EMAA+AL / Poly+AL
Type:
Insulation Tape
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
min 1000 V
Tensile Strength:
min 20Mpa
Name:
Aluminum Copolymer Tape
Thickness:
150u-600u
Width:
17mm-540mm
inner diameter:
53.5mm / 76mm / 102mm / 150mm
Length:
1000m-2050m
outer diameter:
500mm-900mm
Color:
Silver Green Blue
Supply Ability
Supply Ability:
200 Ton/Tons per Month Customer requirements
Packaging & Delivery
Packaging Details
1.Carton,Then put on a plywood pallet
2.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
Port
Shanghai or Ningbo
Lead Time :
Within 15 days after deposit

1.Application

1. Aluminum Copolymer Tape  For optical cable,telephone cables, telecommunication cable

2.Used as waterproof materials

3.For cable shielding

4.Widely used in electronics, electrical, telecommunication

5.ISO and SGS certificate



2.Specifications

Thickness, length and width can according to customer requorements.

Name

Single side Aluminum Copolymer Tape

Thickness

150µ-600µ

Width

17mm-600mm

ID(inner diameter)

53.5mm / 76mm / 102mm / 150mm

(2.1in / 3.0in / 4.0in / 5.9in)

ID material

Plastic or Metal

OD(outer diameter)

500mm-900mm

Length

1000m-2050m

Color

Silver/Green/Blue

Packaging

1.Carton,Then put on a plywood pallet

2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet



Name

Double Side Aluminum Copolymer Tape

Thickness

200µ-600µ

Width

17mm-600mm

ID(inner diameter)

53.5mm / 76mm / 102mm / 150mm

(2.1in / 3.0in / 4.0in / 5.9in)

ID material

Plastic or Metal

OD(outer diameter)

500mm-900mm

Length

1000m-2050m

Color

Silver/Green/Blue

Packaging

1.Carton,Then put on a plywood pallet

2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet



S.NO.

Item

Unit

Requirement

1

Appearance



The surface is plain, smooth, uniform.

2

Tensile Strength

Mpa

≥50

3

Break Elongation

%

≥15

4

Bond Strength between steel tape and plastic film

N/cm

≥6.13

5

Cutting Strength of Heal Seal of Plastic Clad Steel tape



Damage between coating and steel tape, no cutting damage between heat seal area of coating

6

Heat Seal Strength of Plastic Clad Steel Tape

N/cm

≥17.5

7

Water Tolerance(68±1°C,168h)Bond Strength

N/cm

≥6.13

8

Jelly Resistance(68±1°C,168h)



No separation between steel tape and pastic film

9

Corrison Resistance(0.1mol/L HCI,480h)

Grade

≥7

10



Dielectric Strength

One-sided Plastic Clad

Steel Tape 1kV, DC, l min.



Without Breakdown

Two –seded Plastic Clad

Steel Tape 2kV, DC, 1 min



Without Breakdown



3.Test report and test machine



Width
(mm)
Thickness
(mm)
Tension

(N)
Tensile atrength

(MPa)
Elongation at break

(%)
48.0000.3001119.0177.70926.729



 test-machines





4.Production line: Paster & Cutting

aluminium tape machine





5.Product pictures

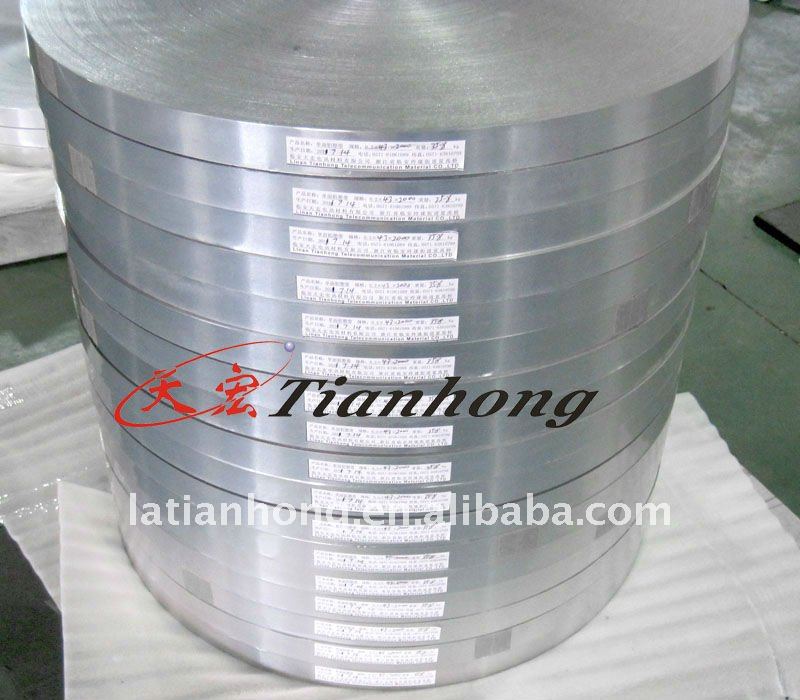

Silver

IMG_7431



IMG_6042





Blue



IMG_8060



IMG_8067





GreenGreen (1)



Green (9)





6.Packaging photos

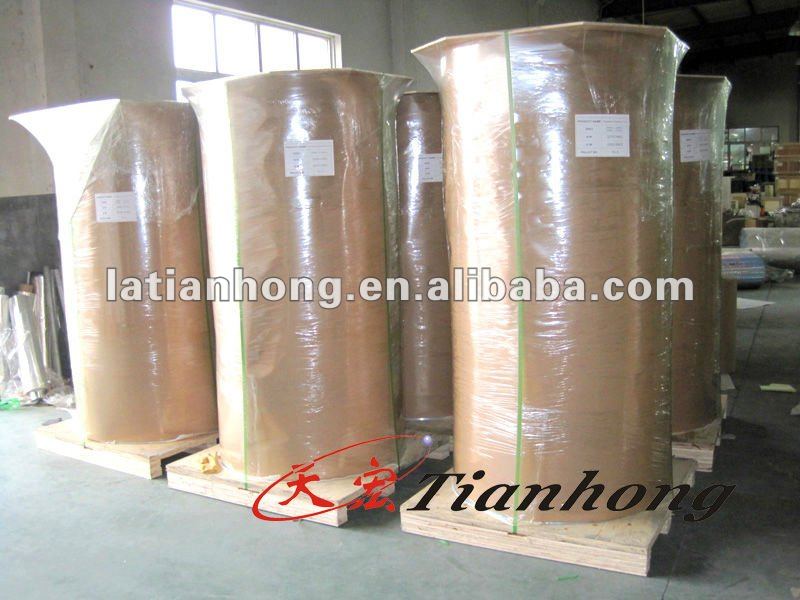

a. Inner-Kraft paper,Then put on a plywood pallet

Packaging-Co-polyer

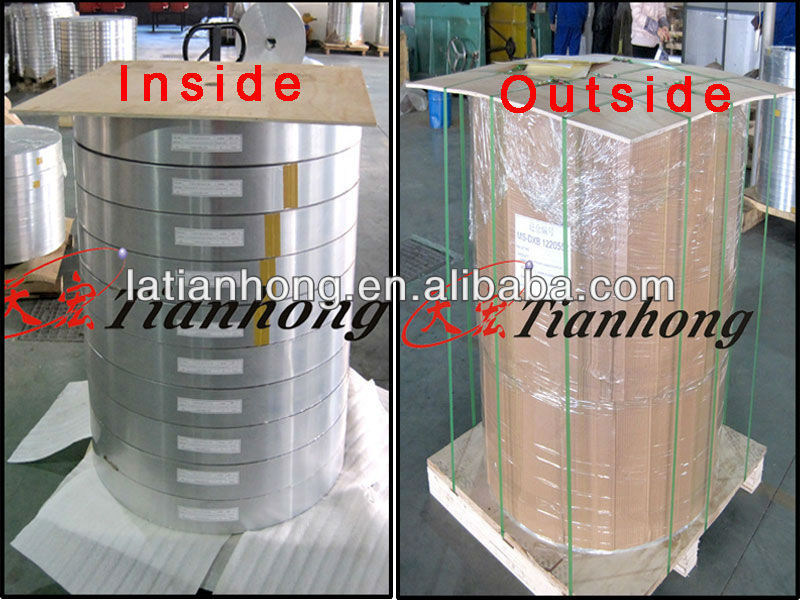

b. Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Wooden box (1)



7.Warehouse

IMG_6058



IMG_8073



8.Application to Cables

-(3)



9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS

10.Sample: We are manufacturer,We supply free sample,But please pay express fee.

11.Contact:Please feel free to contact with me.

Mobile:86-15168349992

TEL:86-571-6106 1089

FAX:86-571-6381 0799
