Polyester film for insulation

FOB Reference Price:Get Latest Price
US $1.8-3 / Kilograms | 1 Ton/Tons Customer requirements (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
Customer requirements
Type:
Insulation Tape
Material:
PET
Application:
High Temperature
Rated Voltage:
Customer requirements
Tensile Strength:
≥100 Mpa
Thickness:
≥12u
Width:
5mm-800mm
ID:
53mm±0.5mm or 75mm±0.5mm
OD:
250-550mm
Color:
Clear white
Supply Ability
Supply Ability:
200 Ton/Tons per Month Customer requirements
Packaging & Delivery
Packaging Details
Carton and each coil with plastic packaging
Port
Shanghai
Lead Time :
Up to customer's requirements

Specifications

Polyester strip provides cladding and insulating for internal structure of the cable.



Usage:

1.For insulating, jelly filled telephone cable, videotape

2.Printing,packaging,covering

3.Metalizing,lamination

4.Capacitor

5.used for sheet moulding as the fiberglass sheet



Specifications:

Thickness

0.012mm-0.25mm

Width

5mm-2000mm

Inner diameter(ID)

38mm or 53.5mm or 76mm or 150mm

1.5in or 2.1in or 3.0in or 5.9in

Outer diameter(OD)

250-550mm

Color

Clear,Milk

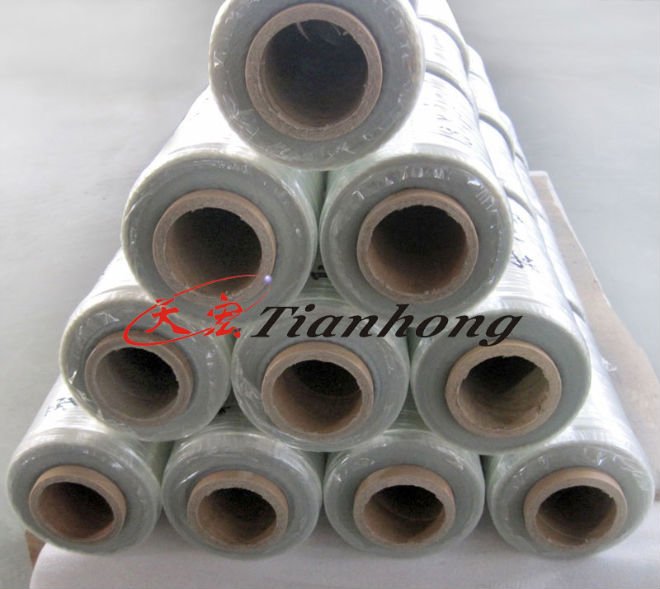

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box



structure

Thickness

weight(gr/m2)

Yield(m2/kg)

PET film

12mic

16.5

60

PET film

15mic

20.6

48

PET film

20mic

27.7

36

PET film

25mic

34.7

28

PET film

30mic

41.2

24

PET film

35mic

48.2

20

PET film

40mic

55.3

18

PET film

50mic

68.8

14

PET film

60mic

82.3

12

PET film

70mic

94.5

10





Test report:

No.Name
Width
(mm)
Thickness
(mm)
Tension

(N)
Tensile atrength

(MPa)
Elongation at break

(%)
1PET film30.0000.100532.04177.345142.446
