For Wire Cable Shielding Insulation Aluminum Foil Tape AL+PET

FOB Reference Price:Get Latest Price
US $3,000-4,500 / Tons | 0.5 Ton/Tons Customer requirements (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
Customer requirements
Type:
Insulation Tape
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
≥1000 V
Tensile Strength:
≥50 Mpa
Thickness:
20μ-150μ
Width:
5mm-1000mm
ID:
55mm±0.5mm/76mm±0.5mm
OD:
250mm-650mm
Color:
Silver,Blue,Golden,Green,Pink
Supply Ability
Supply Ability:
200 Ton/Tons per Month Customer requirements
Packaging & Delivery
Packaging Details
Carton/Wooden box and each coil with plastic packaging,moistureproof.
Port
Shanghai
Lead Time :
Within 15 days after deposit

1. Application

1.For wire cables

2.For insulation materials

3.For telephone lines

4.For flexible duct,air conditioner

5.For packaging

6.For champagne cap

7.Supply SGS,Certificate of original,MSDS,Test report,ect



2. Specifications

Name

Aluminium Polyester Foil(Single side and Double side)

Thickness

20u-150u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

250mm-650mm

Color

Silver,Blue,Golden,Green,Pink

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box

Certificate

SGS,ISO9001

Tensile Strength

≥50 Mpa

Elongation at break

≥35%



Name:AL+PET







Structure

Thickness(mic)

Weight(g/m2)

Yield(m2/kg)

AL7+ PET12

21mic

36



AL7+ PET15

24 mic

39



AL9+ PET12

23mic

43

23

AL9 +PET15

26mic

48

21

AL9 +PET19

30mic

54

19

AL9 +PET23

34mic

60

17

AL12 +PET12

26mic

52

19

AL12 +PET15

29mic

56

18

AL12 +PET19

33mic

62

16

AL12 +PET23

37mic

67

15

AL12 +PET36

50mic

87

12

AL15 +PET19

36mic

70

14

AL25 +PET12

39mic

87

12

AL25 +PET23

50mic

102

10

AL40 +PET12

54mic

127

8

AL40 +PET15

57mic

131

8

AL40 +PET23

65mic

143

7

AL40 +PET36

78mic

161

6

AL50 +PET12

64mic

154

6

AL50 +PET15

67mic

158

6

AL50 +PET23

75mic

170

6

AL50 +PET36

88mic

188

5





3.Test report and test machine











NameWidth(mm)Thickness
(mm)
Tension
(N)
Tensile strength
(MPa)
Elongation at break
(%)
PETP/AL 15/920.0000.02763.96118.45293.597







test-machines







4.Production line: Lamination & Cutting

1105 (1)

IMG_7239

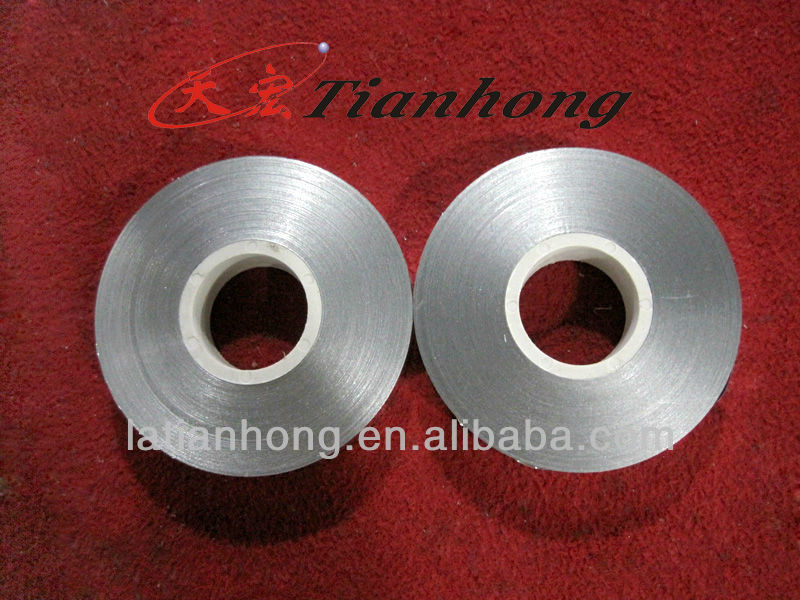

5.Product pictures

4.14A (5)



IMG_7094



IMG_7074



7.5 (1)



6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Pallet (4)

b.Inner-plastic bag,Outside plywood wooden box

8-25



7.Warehouse

1105 (3)



8.Application to Cables and Flexible Ducts

-(5)



IMG_7248



9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS

10.Sample: We are manufacturer,We supply free sample,But please pay express fee



11.Contact:Please feel free to contact with me

Mobile:86-15168349992
