Blue color aluminum PET tape

FOB Reference Price:Get Latest Price
US $2,800-4,500 / Tons | 0.1 Ton/Tons aluminum PET tape for cable (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
AP0044
Type:
Insulation Tape
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
≥1 Kv
Tensile Strength:
≥50 Mpa
Thickness:
20μ-150μ
Width:
5mm-1000mm
ID:
53±0.5mm/76mm±0.5mm
OD:
250mm-700mm
Color:
silver/blue/golden
OD material:
plastic or paper
Supply Ability
Supply Ability:
200 Ton/Tons per Month
Packaging & Delivery
Packaging Details
1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
2.Inner-plastic bag,Outside plywood wooden box
Port
Shanghai
Lead Time :
Within 15 days after deposit

1.Application

1.For wire cables

2.For insulation materials

3.For telephone lines

4.For flexible duct,air conditioner

5.We are manufacturer

6.For champagne cap

7.Can supply SGS,Certificate of original,MSDS,Test report,ect



2. Specifications

Name

Aluminum PET tape for cables (AL+PET and AL+PET+AL)

Thickness

20u-150u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

250mm-650mm

Color

Silver,Blue,Golden

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box



Name:AL+PET







Structure

Thickness(mic)

Weight(g/m2)

Yield(m2/kg)

AL9+ PET12

23mic

43

23

AL9 +PET15

26mic

48

21

AL9 +PET19

30mic

54

19

AL9 +PET23

34mic

60

17

AL12 +PET12

26mic

52

19

AL12 +PET15

29mic

56

18

AL12 +PET19

33mic

32

16

AL12 +PET23

37mic

67

15

AL12 +PET36

50mic

87

12







3.Test report and test machine

Width(mm)Thickness
(mm)
Tension
(N)
Tensile strength
(MPa)
Elongation at break
(%)
10.0000.02730.96114.68351.169
12.0000.02747.39146.26783.859
15.0000.02759.53146.97978.151



test-machines



4.Production line: Lamination & Cutting

composite machine (1)





IMG_7235



5..Product pictures

PAD packaging-Silver color

1 (10)



Spool packaging-Slitted-Silver color

6



 PAD packaging-Blue color

IMG_693



Big roll-Blue color

IMG_6731



 PAD Packaging-Copper color

aluminium PET copper color (6)





Spool packaging-Slitted-Gold color

7.5 (1)





6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Pallet (4)

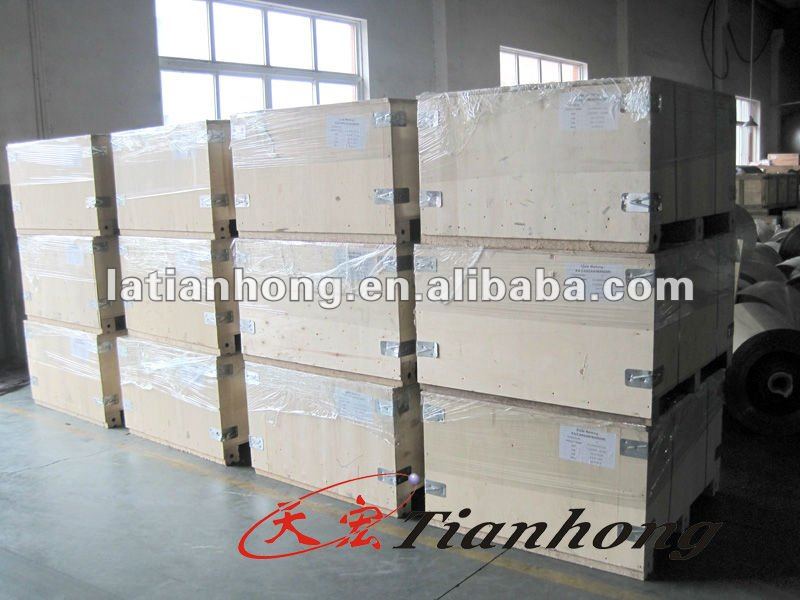

b.Inner-plastic bag,Outside plywood wooden box

Wooden box



7.Warehouse1105 (3)

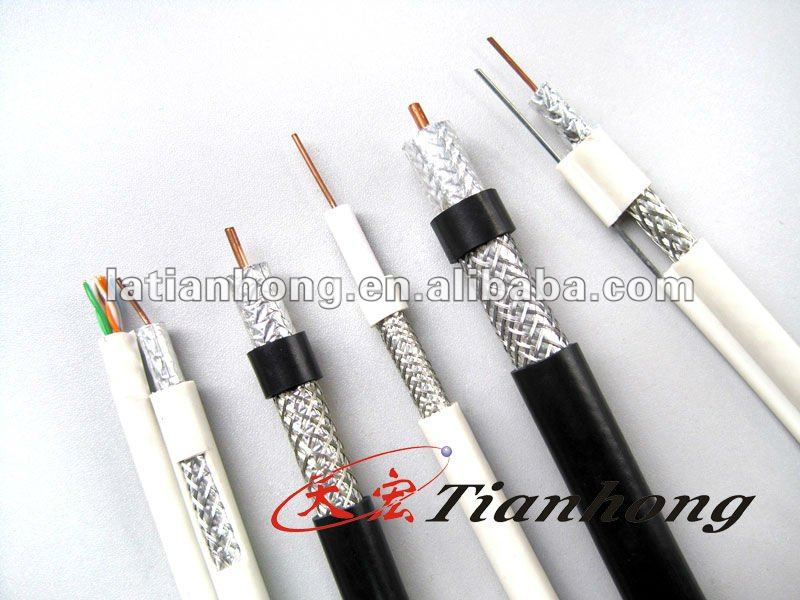

8.Application to cables

-(9)



9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS

10.Sample: We are manufacturer,We supply free sample,But please pay express fee.

11.Contact:Please feel free to contact with me.

Mobile:86-15168349992
