Insulation film polyester film mylar(PET)

FOB Reference Price:Get Latest Price
US $1,600-3,100 / Tons | 200 Kilogram/Kilograms customer's requirement (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
Insulation film
Type:
Insulation Film
Material:
PET
Application:
High Temperature
Rated Voltage:
min 5KV
Tensile Strength:
min 60 Mpa
Name:
Insulation film polyester film mylar(PET)
Thickness:
12micron-250micron
Width:
5mm-2000mm
ID(Inner diameter):
53.5mm or 76mm
OD(Outer diameter):
250mm-550mm
Supply Ability
Supply Ability:
200 Ton/Tons per Month customer's requirement
Packaging & Delivery
Packaging Details
1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
2.Inner-plastic bag,Outside plywood wooden box
Port
Shanghai or Ningbo
Lead Time :
Within 10 days after getting deposit.

Specifications

1.For insulating
2.For cable
3.For sheet moulding as the fiberglass shee







Product Description





1.Usage for insulation film polyester film mylar(PET)

1.For insulating, jelly filled telephone cable, videotape

2.For Printing,packaging,covering

3.For Metalizing,lamination

4.For Capacitor

5.For sheet moulding as the fiberglass sheet



2.Specifications

Thickness

0.012mm-0.25mm

Width

5mm-2000mm

Inner diameter(ID)

53.5mm or 76mm

Outer diameter(OD)

250mm-550mm

Color

Clear,Milk

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box



structure

Thickness

weight(gr/m2)

Yield(m2/kg)

Polyester film

12mic

16.5

60

Polyester film

15mic

20.6

48

Polyester film

20mic

27.7

36

Polyester film

23mic

31.9

31

Polyester film

25mic

34.7

28

Polyester film

30mic

41.2

24

Polyester film

35mic

48.2

20

Polyester film

40mic

55.3

18

Polyester film

50mic

68.8

14

Polyester film

60mic

82.3

12

Polyester film

70mic

94.5

10

Polyester film

170mic

234.0





3.Test report and test machine

Width
(mm)
Thickness

(mm)
Tension

(N)
Tensile atrength

(MPa)
Elongation at break
(%)
50.0000.050408.89163.5677.53







test-machines

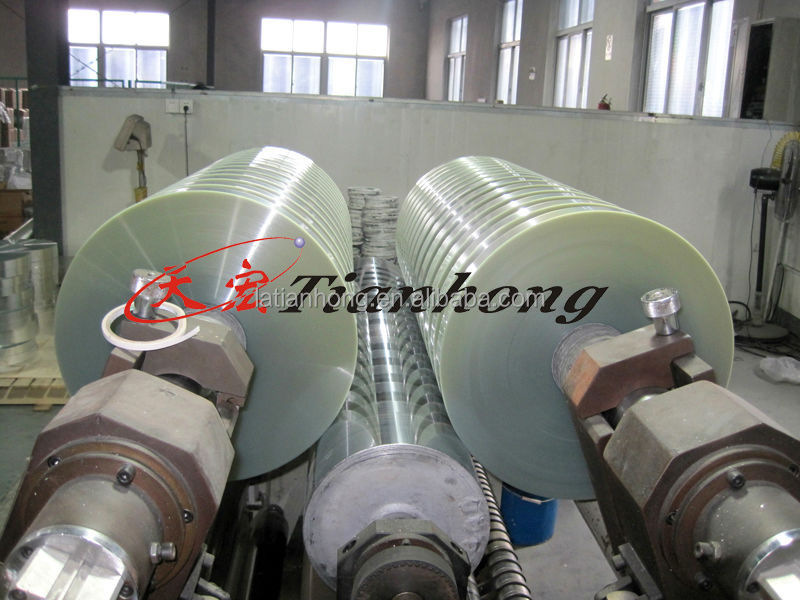

4.Production line

  PET 2.27 (3)



Polyester5.23 (7)

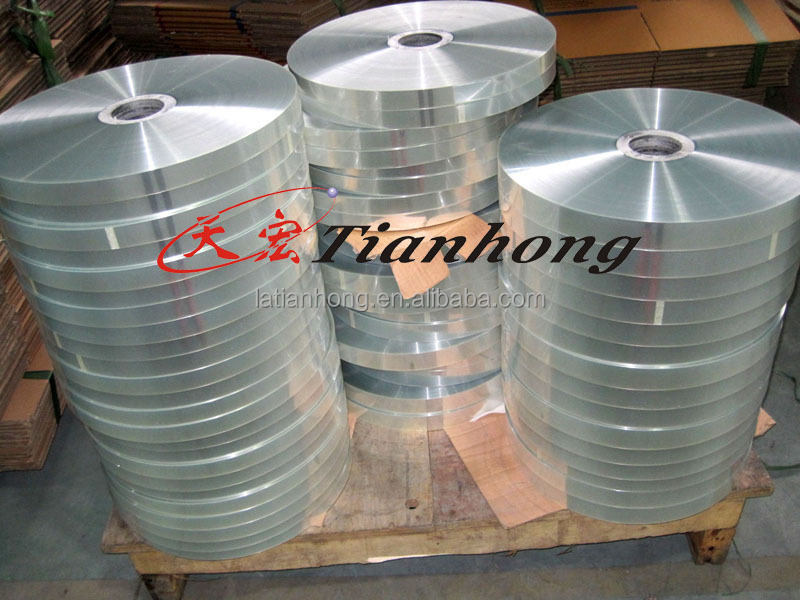

5.Product pictures

 1014 (13)



1014 (10)



Polyester5.23 (3)



PET 2.27 (4)



PET 2.27 (6)PET-different-packaging-2













Packaging & Shipping

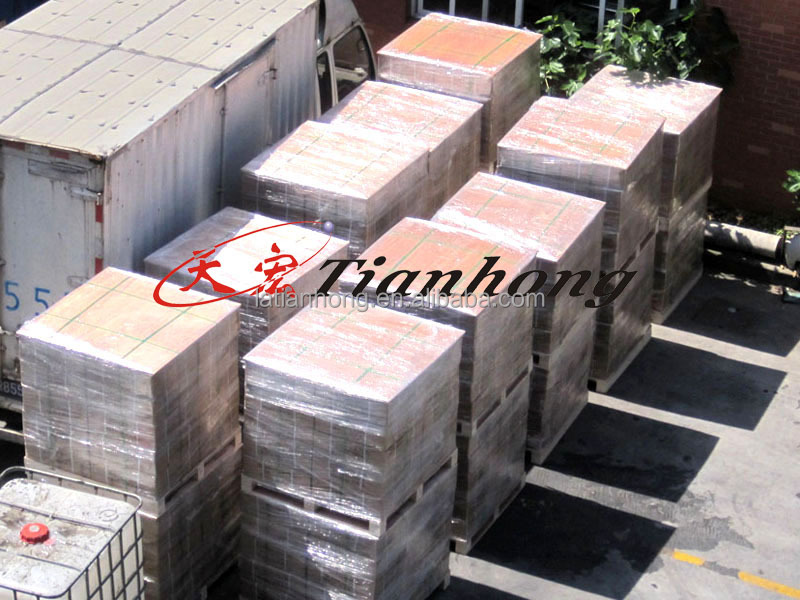

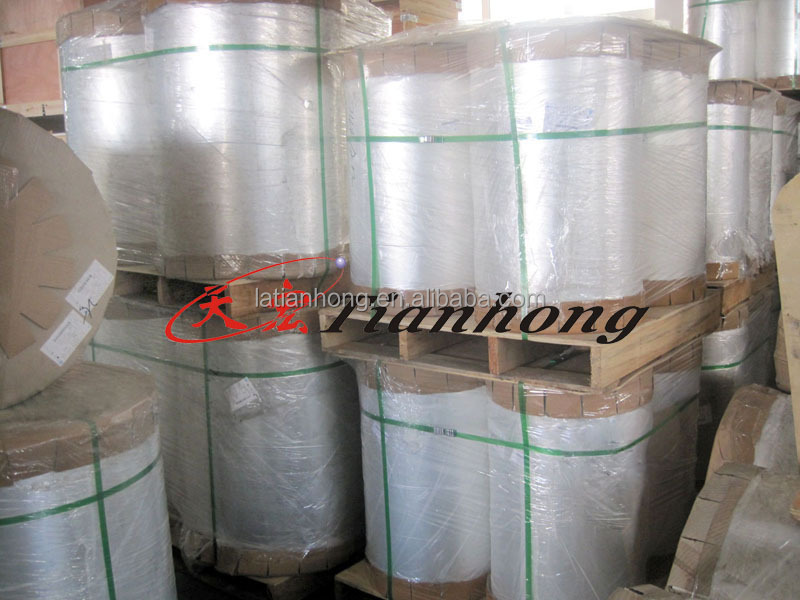

6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

  0529 (1)



b.Inner-plastic bag,Outside plywood wooden box

8-25



7.Warehouse

1105 (3)



8.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS



9.Sample: We are manufacturer,We supply free sample,But please pay express fee.



10.Contact:Please feel free to contact with me.

Mobile:86-15168349992

FAX:86-571-6381 0799
