Aluminum foil PET coated for cable shielding

FOB Reference Price:Get Latest Price
US $2,900-4,500 / Tons | 0.1 Ton/Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
AL+PET
Type:
Insulation Film
Material:
PET
Application:
High Temperature
Rated Voltage:
≥1kv
Tensile Strength:
≥50mpa
Thickness:
20μ-150μ
Width:
5mm-1000mm
ID:
53mm±0.5mm or 76mm±0.5mm
OD:
250mm-650mm
Color:
Silver,Blue,Golden,Green,Pink,Yellow
Supply Ability
Supply Ability:
200 Ton/Tons per Month Customer requirements
Packaging & Delivery
Packaging Details
Carton/Wooden box and plastic packaging,moistureproof.
Port
Shanghai or Ningbo
Lead Time :
Up to customer's requirement

Specifications

1.For wire cables;
2.For insulation materials;
3.For telephone lines;
4.Can supply SGS,Certificate of original,MSDS.



1. Application

1.For wire cables;

2.For insulation materials;

3.For telephone lines;

4.For flexible duct,air conditioner;

5.For packaging;

6.We are manufacturer;

7.For champagne cap;

8.Can supply SGS,Certificate of original,MSDS,Test report,ect;



2. Dimensions

Name

Aluminum foil PET coated for cable shielding

Thickness

20u-150u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

250mm-650mm

Color

Silver,Blue,Golden

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box

Certificate

SGS,ISO9001

Tensile Strength

≥50 Mpa

Elongation at break

≥35%



Name:AL+PET







Structure

Thickness(mic)

Weight(g/m2)

Yield(m2/kg)

AL9+ PET12

23mic

43

23

AL9 +PET15

26mic

48

21

AL9 +PET19

30mic

54

19

AL9 +PET23

34mic

60

17

AL12 +PET12

26mic

52

19

AL12 +PET15

29mic

56

18

AL12 +PET19

33mic

62

16

AL12 +PET23

37mic

67

15

AL12 +PET36

50mic

87

12

AL15 +PET19

36mic

70

14

AL25 +PET12

39mic

87

12

AL25 +PET23

50mic

102

10

AL40 +PET12

54mic

127

8

AL40 +PET15

57mic

131

8

AL40 +PET23

65mic

143

7

AL40 +PET36

78mic

161

6

AL50 +PET12

64mic

154

6

AL50 +PET15

67mic

158

6

AL50 +PET23

75mic

170

6

AL50 +PET36

88mic

188

5





3.Test report and test machine



No.NameWidth(mm)Thickness
(mm)
Tension
(N)
Tensile strength
(MPa)
Elongation at break
(%)
1Aluminum foil PET coated10.0000.02734.45127.57762.688

 test-machines





4.Production line: Lamination & Cutting

 1105 (1)



6.22 (2)

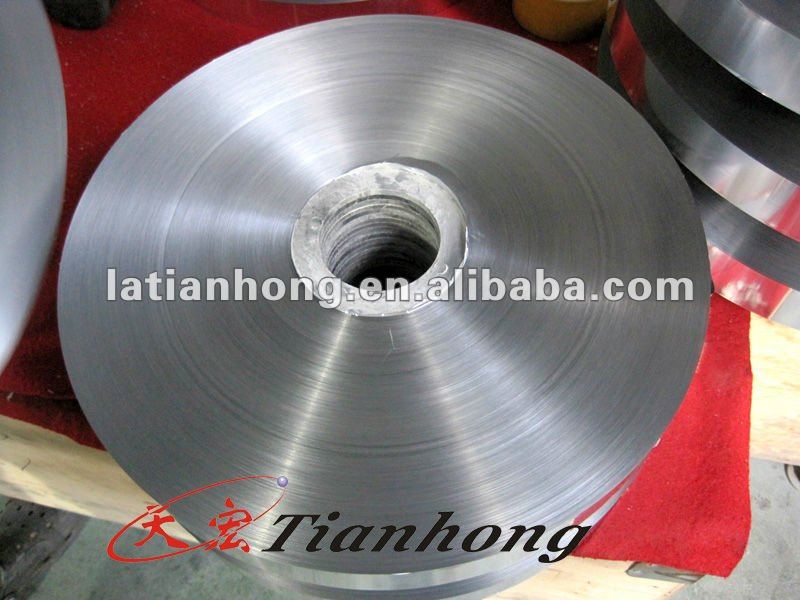

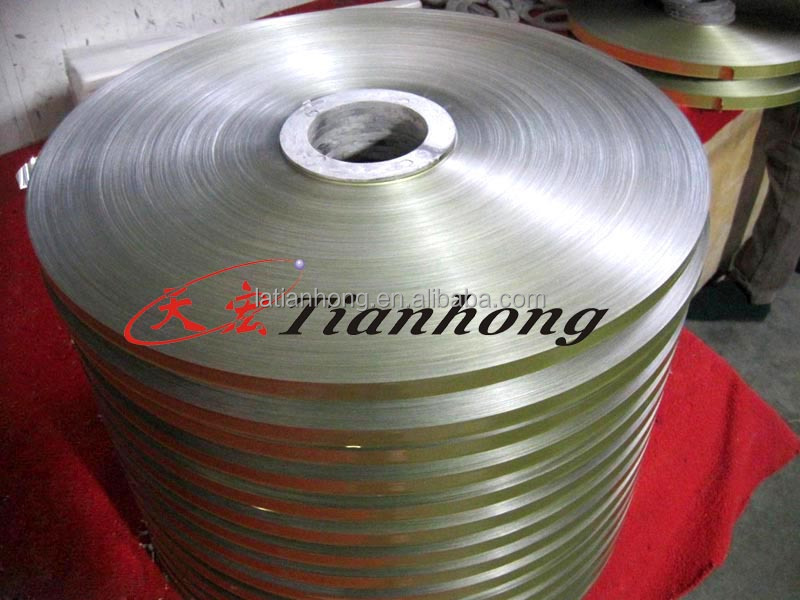

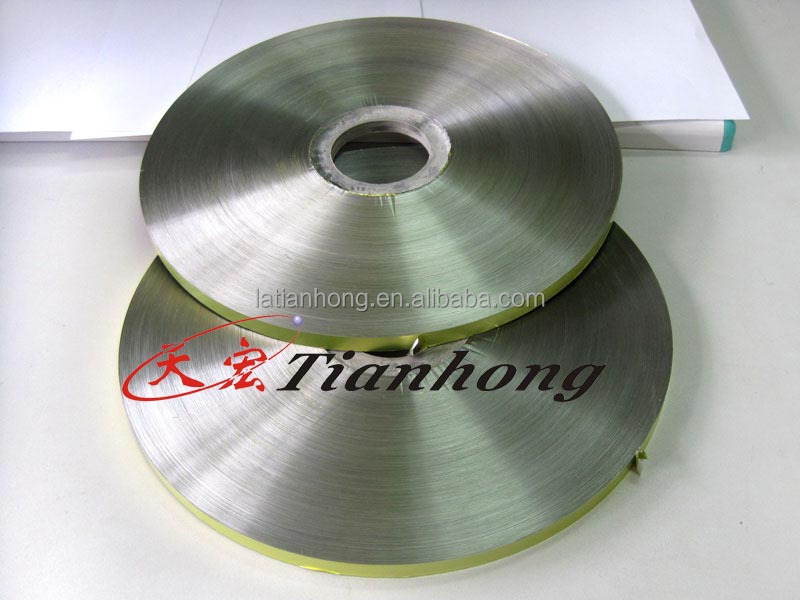

5.Product pictures

 6.22 (3)





6.22 (1)





IMG_7486



IMG_7489



PET-different-packaging





6.Packaging photos



a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

0529 (1)





b.Inner-plastic bag,Outside plywood wooden box

Wooden box





7.Warehouse

1105 (3)





8.Application to Cables and Flexible Ducts

-(11)





pipe





9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS



10.Sample: We are manufacturer,We supply free sample,But please pay express fee





11.Contact:Please feel free to contact with me

Mobile:86-15168349992

FAX:86-571-6381 0799
