Blue Aluminum mylar polyester insulation film for cable

FOB Reference Price:Get Latest Price
US $2,800-4,500 / Tons | 0.1 Ton/Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
Aluminum mylar polyester film
Type:
Insulation Film
Material:
PET
Application:
High Temperature
Rated Voltage:
≥1000v
Tensile Strength:
≥50 Mpa
Name:
Blue Aluminum mylar polyester insulation film for cable
Thickness:
20μ-150μ
Width:
5mm-1000mm
ID:
53±0.5mm/76mm±0.5mm
OD:
250mm-700mm
Color:
Silver,Blue,Golden,Green,Pink,Yellow
Supply Ability
Supply Ability:
200 Ton/Tons per Month
Packaging & Delivery
Packaging Details
1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
2.Inner-plastic bag,Outside plywood wooden box
Port
Shanghai or Ningbo
Lead Time :
Within 15 days after deposit

Specifications

1.For cable insulation materials
2.Aluminum laminated with PET film
3.Supply RoHS,Certificate of original,MSDS,Test report,ect



1.Application

1.For wire cables

2.For insulation materials

3.For telephone lines

4.For flexible duct,air conditioner

5.We are manufacturer

6.For champagne cap

7.Can supply SGS,Certificate of original,MSDS,Test report,ect



2. Specifications

Name

Blue Aluminum mylar polyester insulation film for cable

Thickness

20u-150u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

250mm-650mm

Color

Silver,Blue,Golden

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box





Name:AL+PET







Structure

Thickness(mic)

Weight(g/m2)

Yield(m2/kg)

AL7+ PET12

21mic

36



AL7+ PET15

24 mic

39



AL9+ PET12

23mic

43

23

AL9 +PET15

26mic

48

21

AL9 +PET19

30mic

54

19

AL9 +PET23

34mic

60

17

AL12 +PET12

26mic

52

19

AL12 +PET15

29mic

56

18

AL12 +PET23

37mic

67

15

AL12 +PET36

50mic

87

12

AL15 +PET23

40mic

74



AL25 +PET12

39mic

87

12

AL25 +PET23

50mic

102

10

AL40 +PET15

57mic

131

8

AL40 +PET23

65mic

143

7

AL50 +PET12

64mic

154

6

AL50 +PET15

67mic

158

6

AL50 +PET23

75mic

170

6





3.Test report and test machine

Width(mm)Thickness
(mm)
Tension
(N)
Tensile strength
(MPa)
Elongation at break
(%)
10.0000.02730.96114.68351.169
12.0000.02747.39146.26783.859
15.0000.02759.53146.97978.151



test-machines



4.Production line: Lamination & Cutting

composite machine (1)





IMG_6729





5..Product pictures

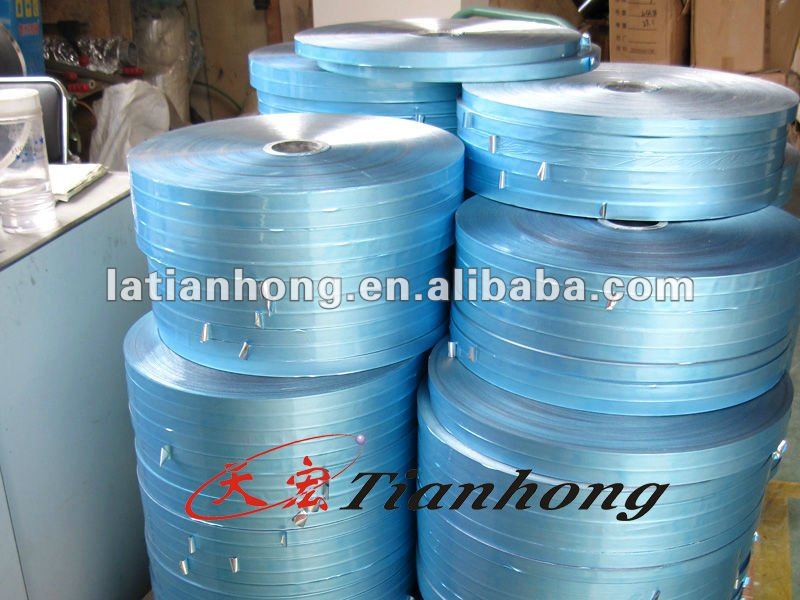

 PAD packaging-Blue color

IMG_693

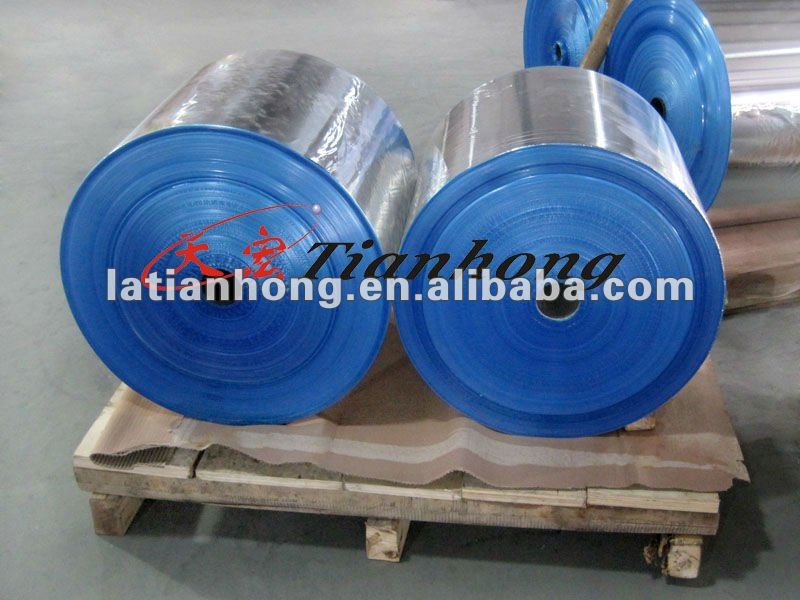

Big roll-Blue color

IMG_6731



IMG_7529





IMG_6728









6.Packaging photos

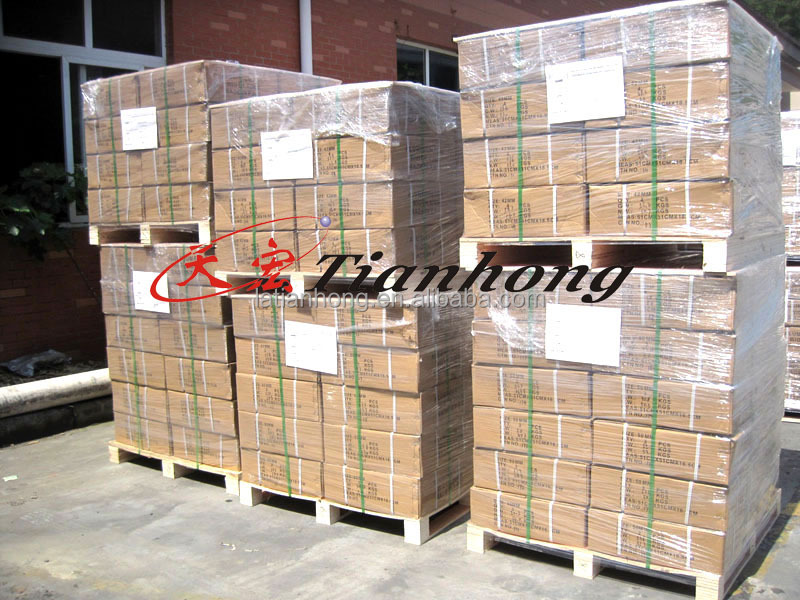

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

0529 (2)



b.Inner-plastic bag,Outside plywood wooden box

Wooden box



7.Warehouse1105 (3)





8.Application to cables

-(9)



9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS

10.Sample: We are manufacturer,We supply free sample,But please pay express fee.



11.Contact:Please feel free to contact with me.
